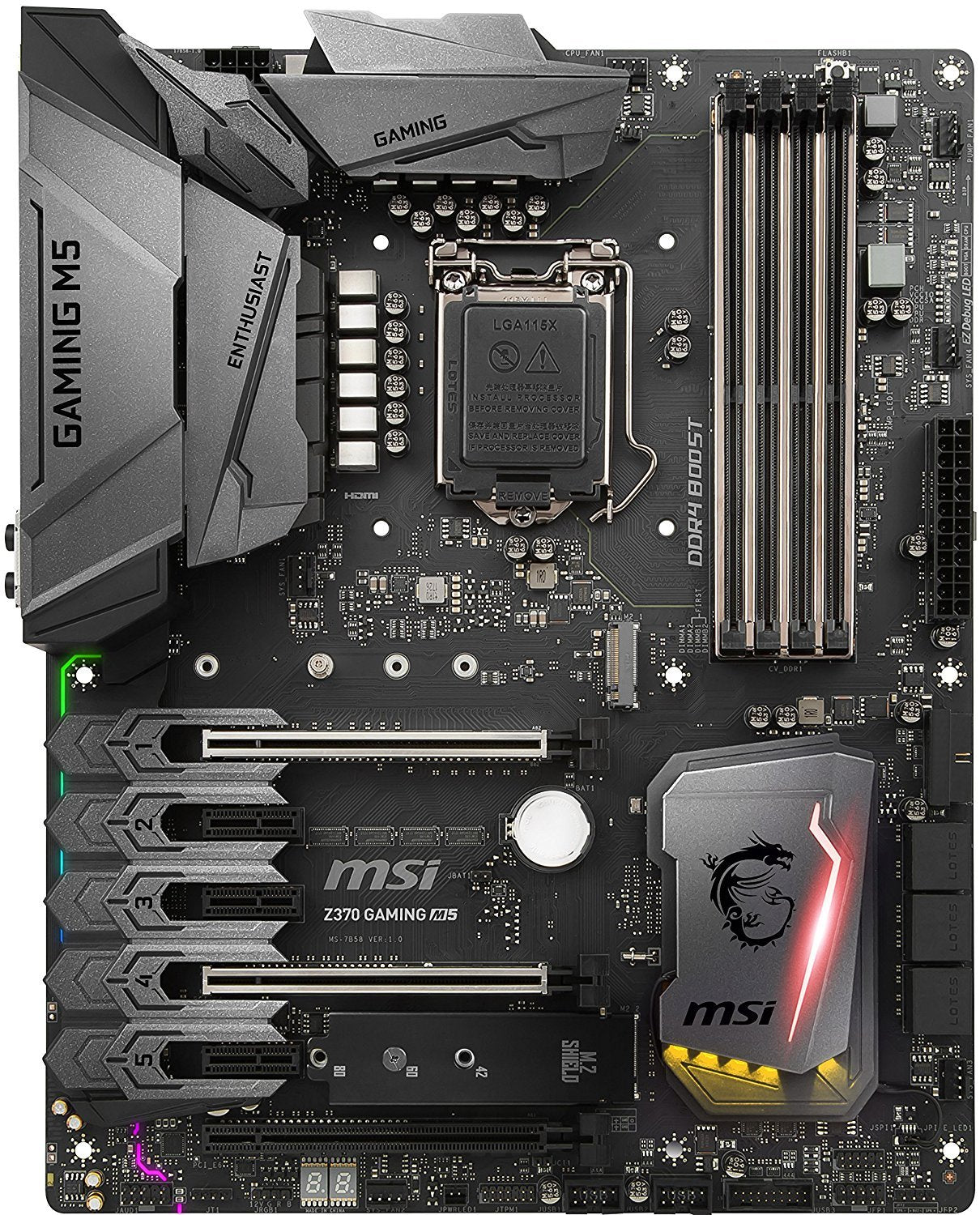

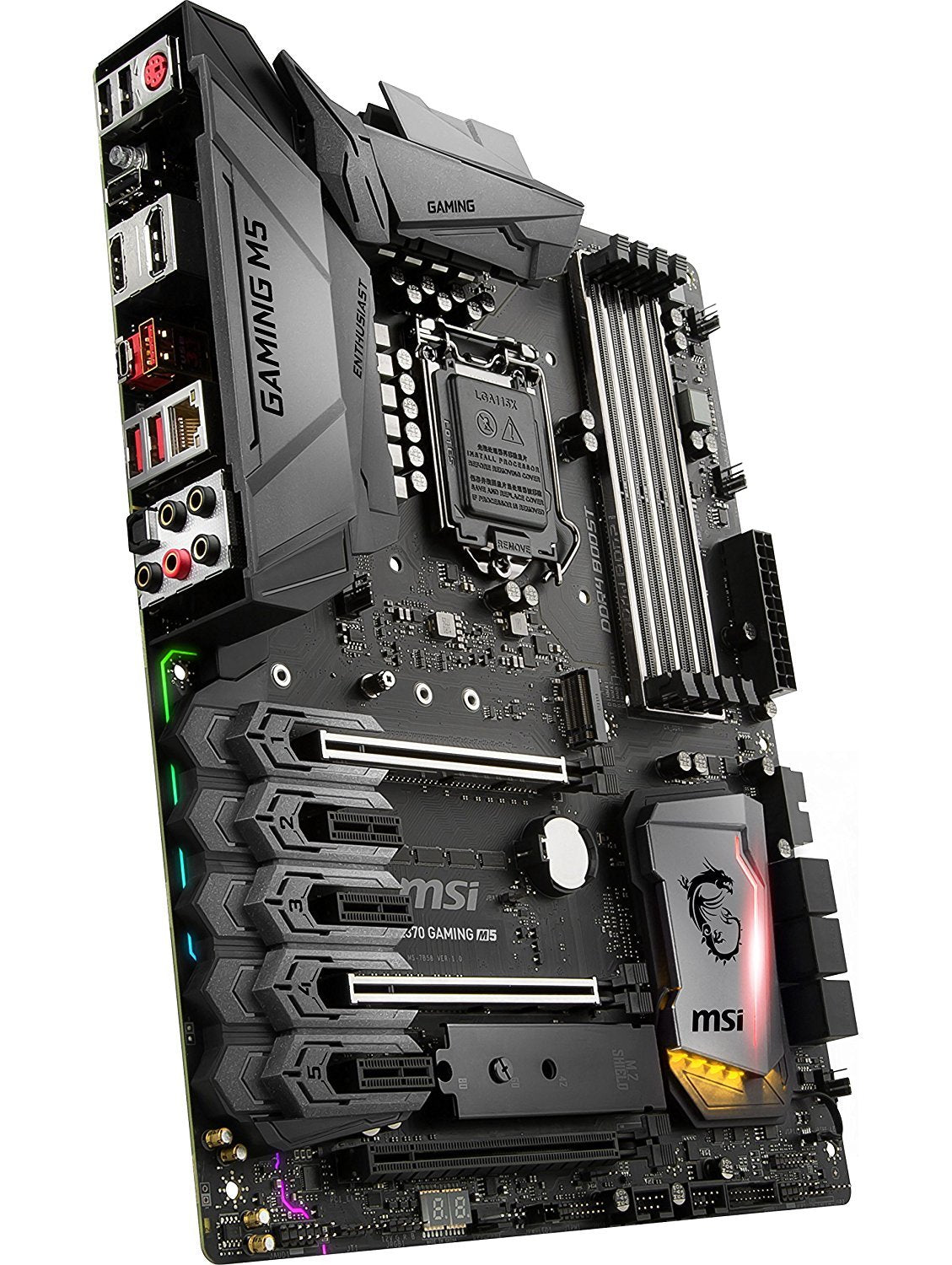

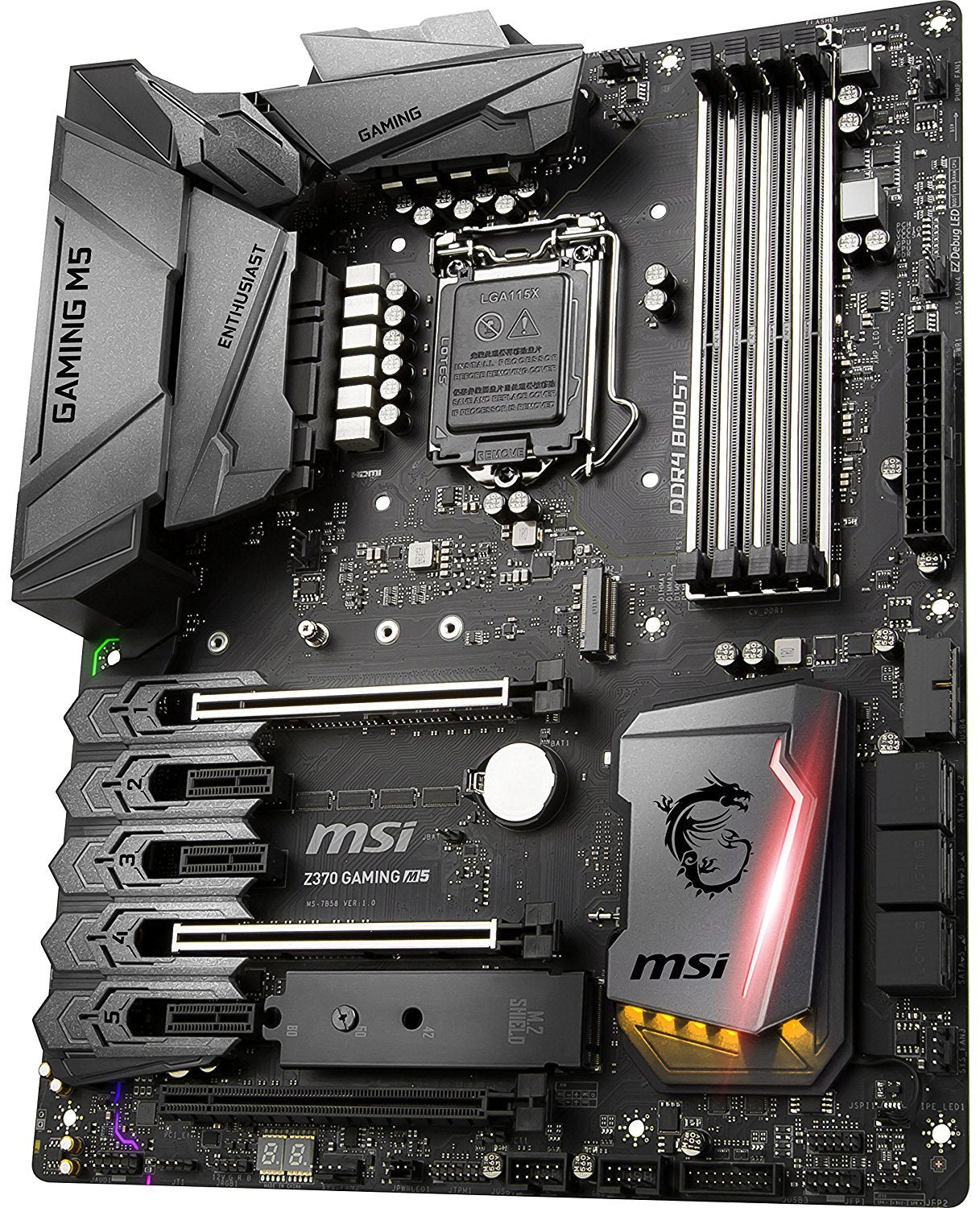

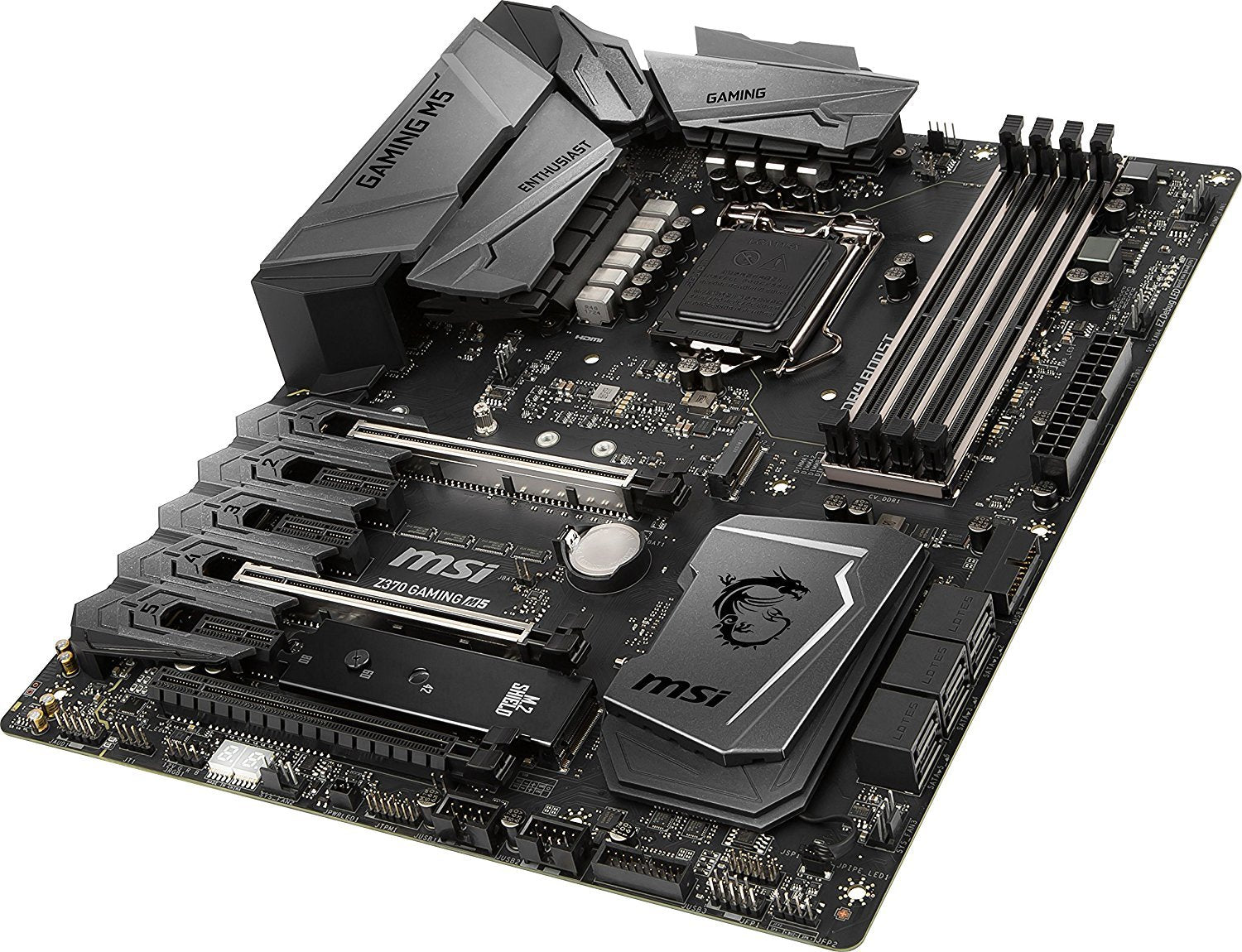

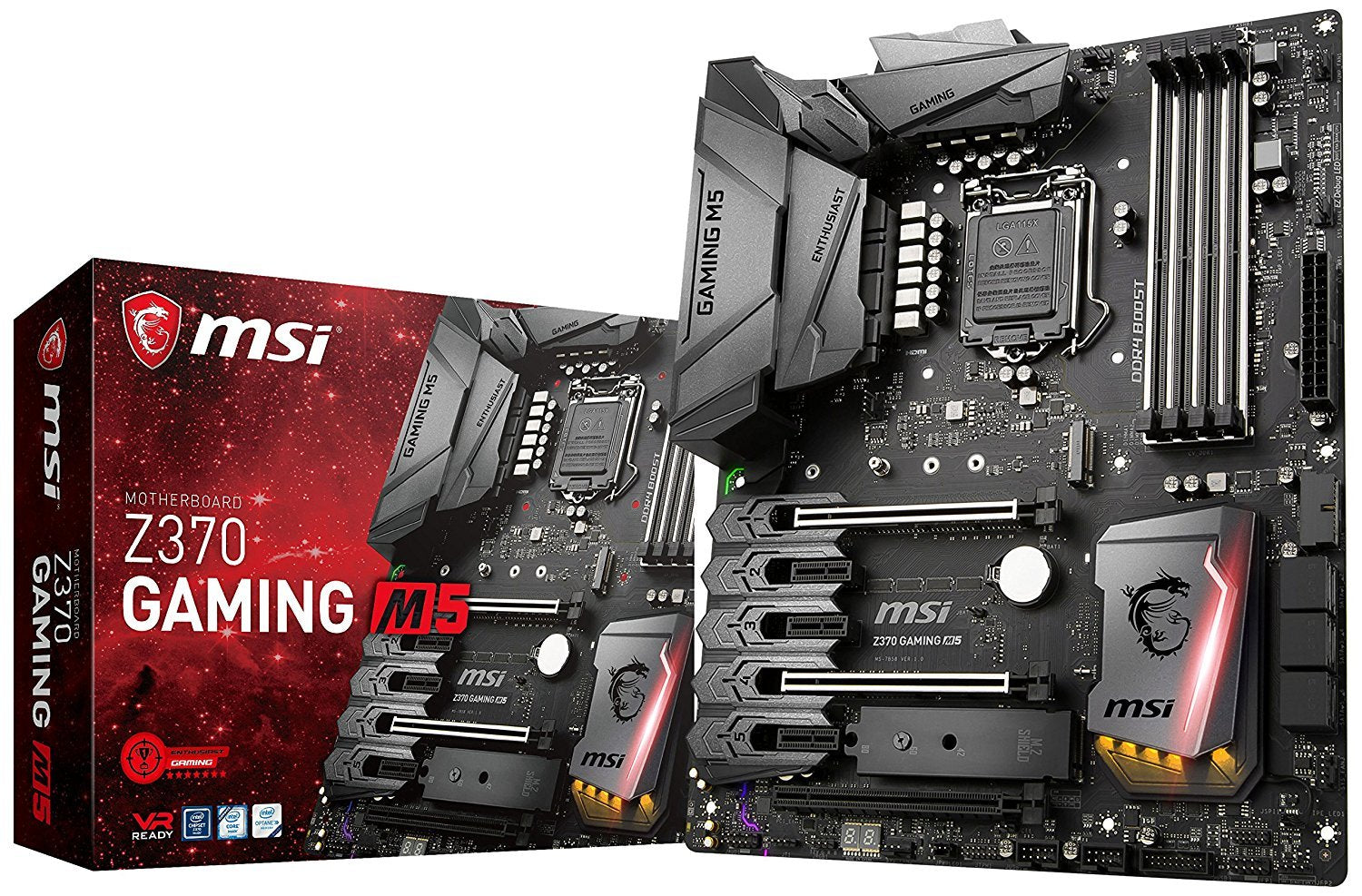

MSI Z370 GAMING M5 Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI Z370 GAMING M5

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel Z370 Chipset

Form Factor

ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
Supports Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

Supports 3-Way AMD® CrossFire™ Technology
Supports 2-Way NVIDIA® SLI™ Technology

Available Expansion Slots

3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
3 x PCIe 3.0 x1 slots

LAN

1 x KillerTM E2500 Gigabit LAN controller

Audio

Realtek® ALC1220 Codec
7.1-Channel High Definition Audio

Available USB Ports

ASMedia® ASM3142 Chipset
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
Intel® Z370 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through        the internal USB connectors)
7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Special Features

Supports 8th Generation Intel Core, Pentium, and Celeron Processors for Socket LGA 1151

Intel Z370 Express Chipset

Form Factor: ATX

4 x DDR4 memory slots supporting up 64GB

Supports 2-Way NVIDIA SLI

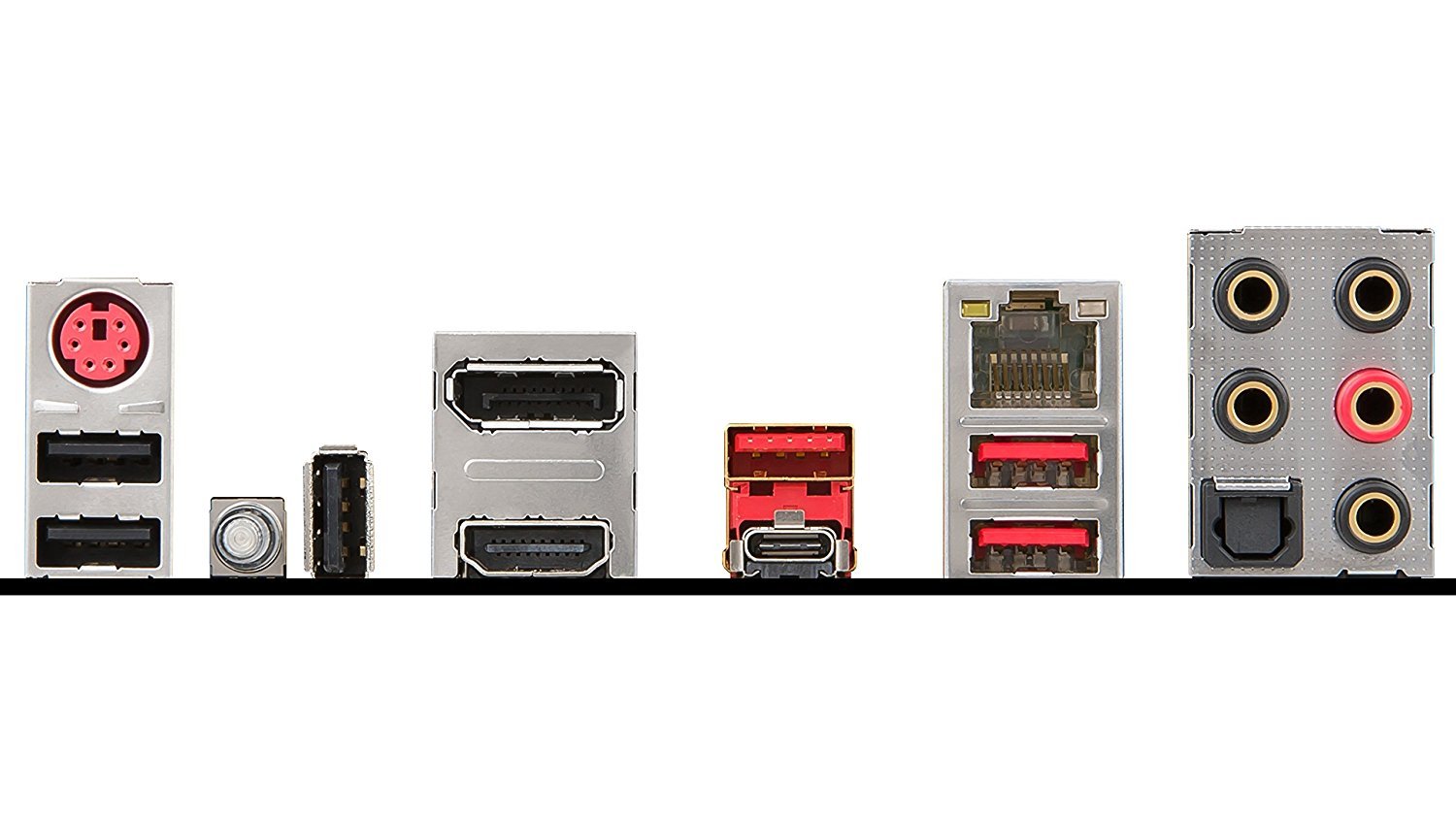

Back I/O Ports

1 x PS/2 mouse & keyboard combo port
3 x USB 2.0 ports
1 x BIOS FLASHBACK+ port
1 x Clear CMOS button
1 x DisplayPort
1 x HDMI™ port
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port1 x LAN (RJ45) port
2 x USB 3.1 Gen1 Type-A ports
1 x Optical S/PDIF OUT connector
5 x OFC audio jacks

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x M.2 slots
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x BIOS FLASHBACK+ button
1 x 2-Digit Debug Code LED
1 x LED power input connector
