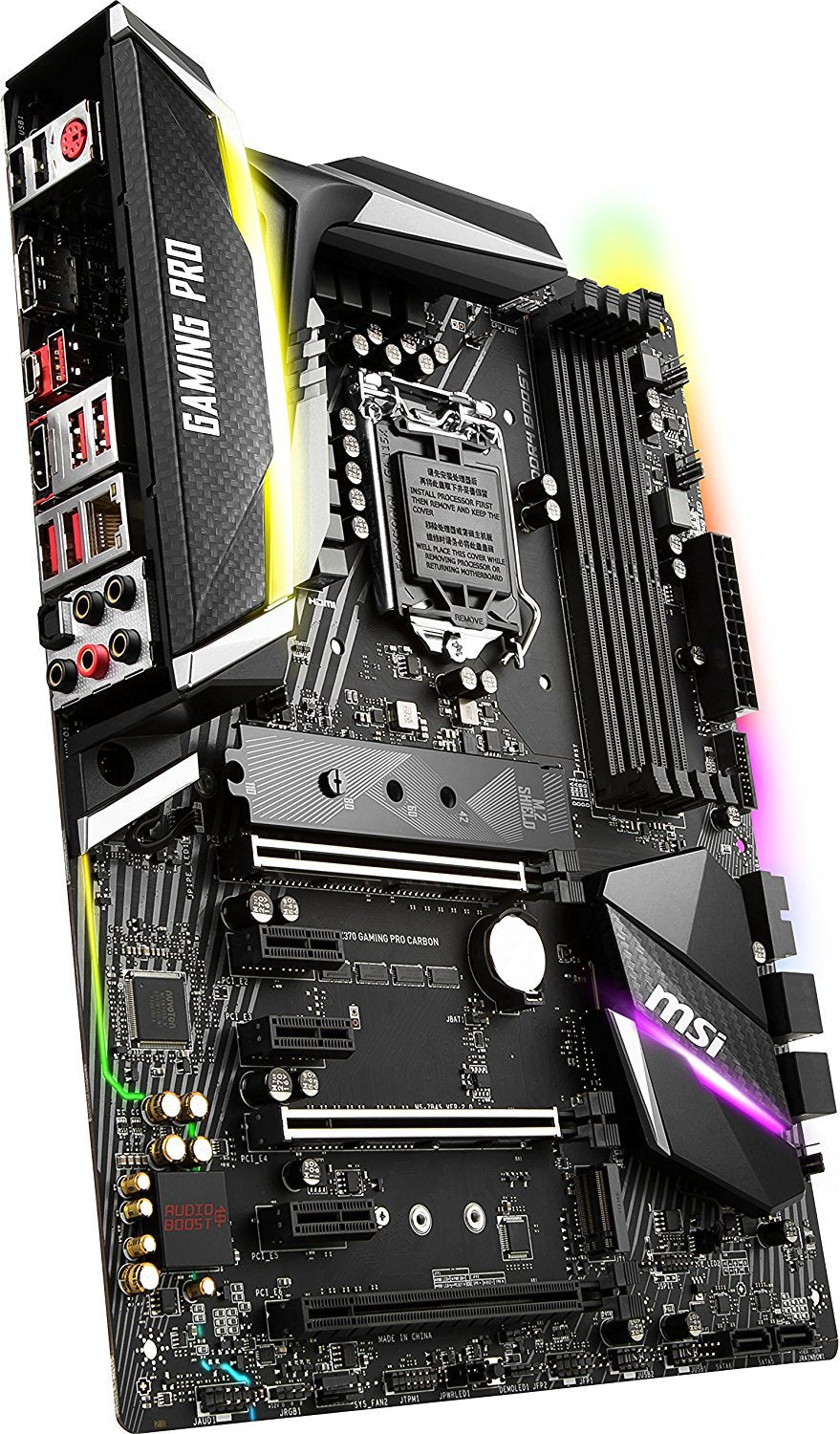

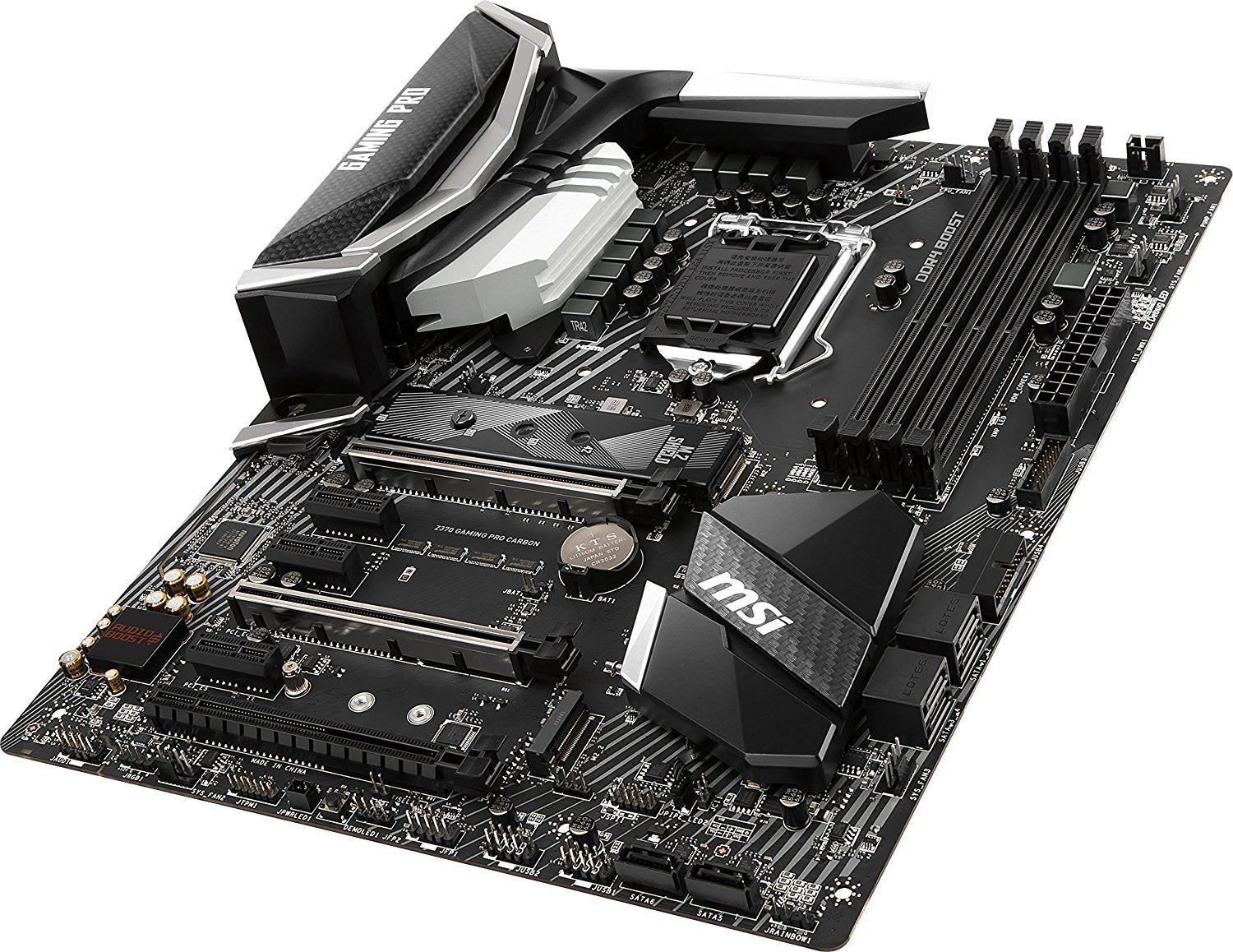

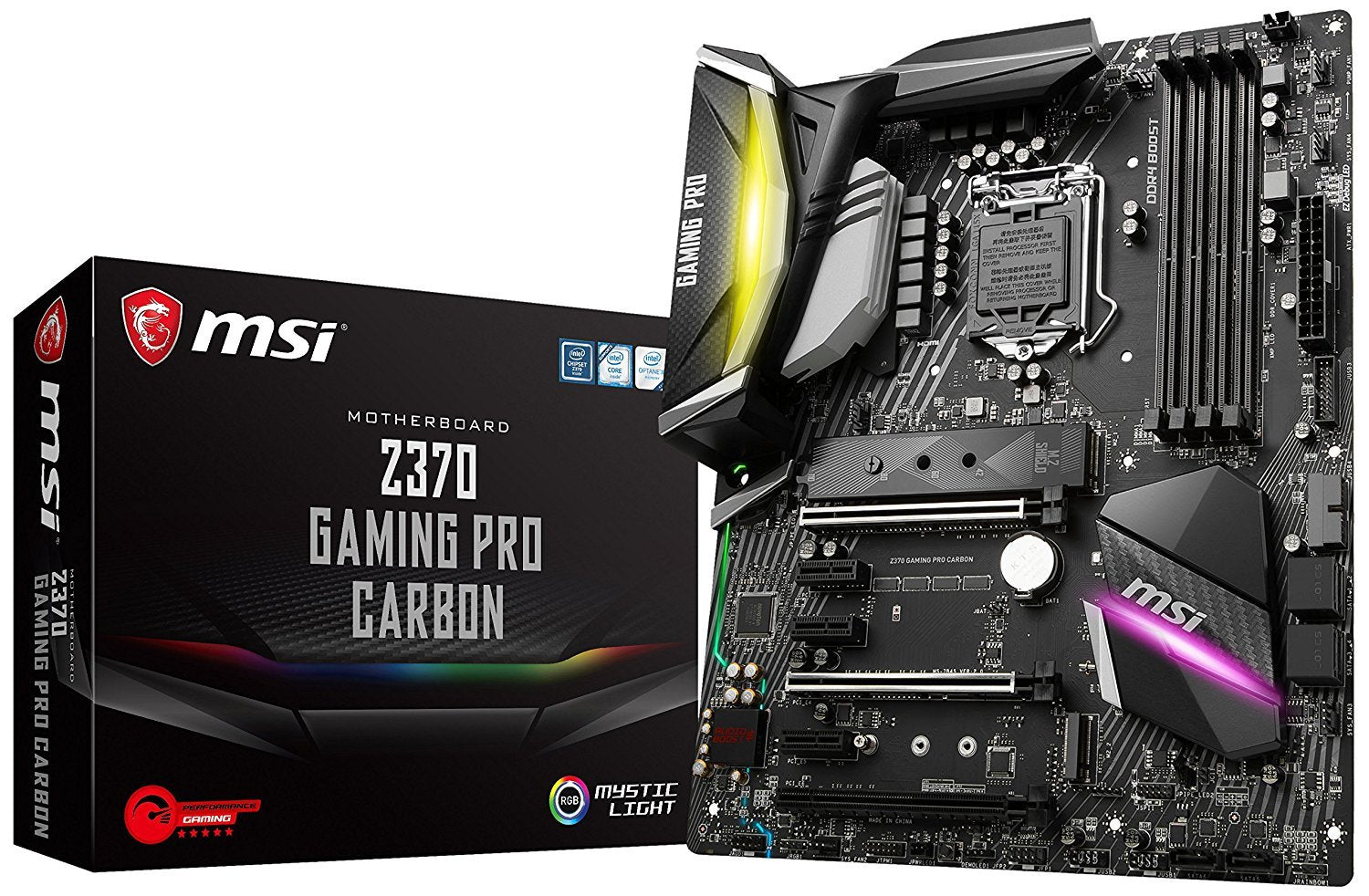

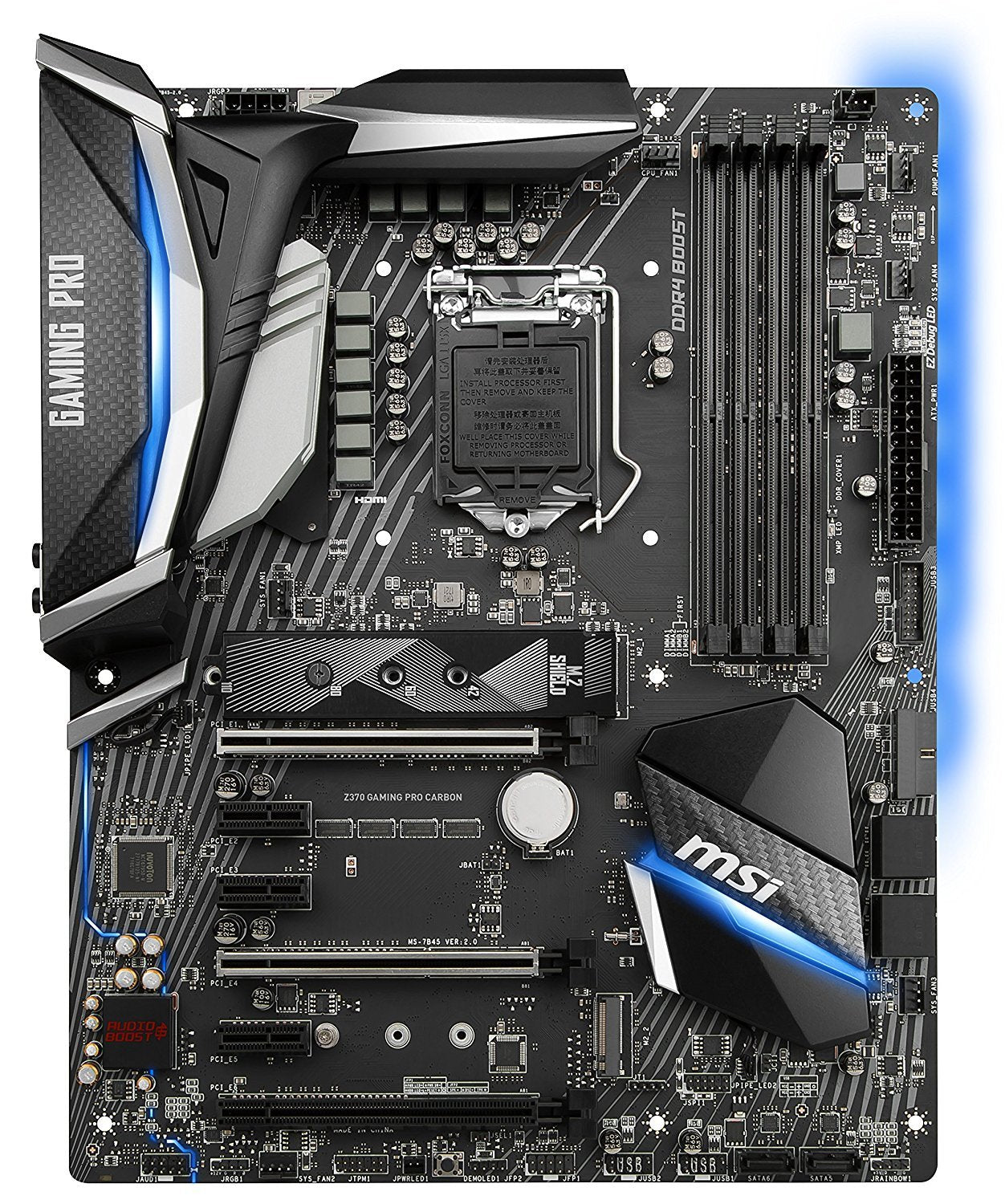

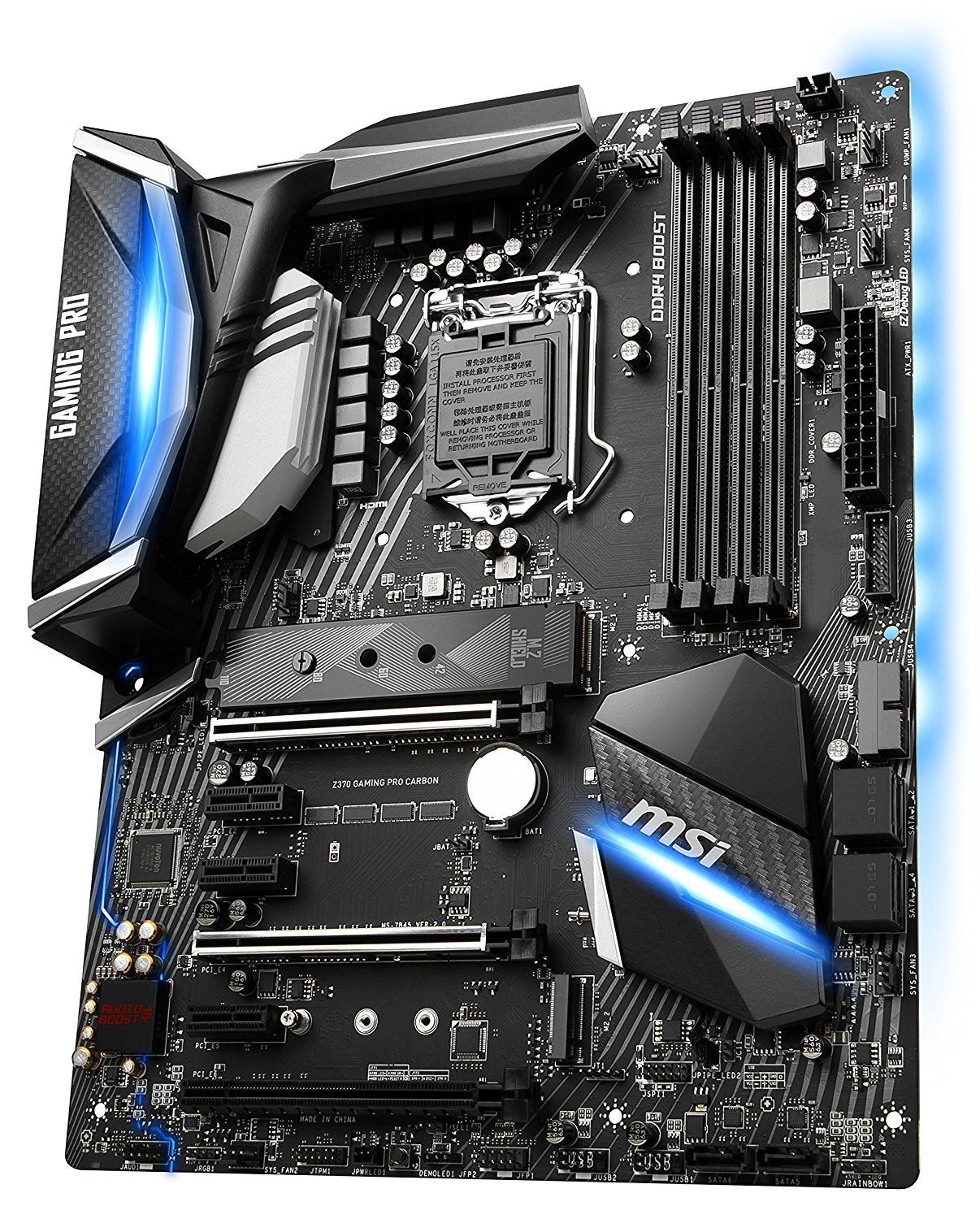

MSI Z370 Gaming PRO CARBON Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI Z370 PRO CARBON

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel Z370 Chipset

Form Factor

ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology

Available Expansion Slots

• 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots

LAN

• 1 x Intel I219-V Gigabit LAN controller

Audio

• Dual Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

Available USB Ports

• ASMedia® ASM3142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Special Features

Supports 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket

Supports DDR4 Memory, up to 4000+(OC) MHz

MYSTIC LIGHT: 16.8 million colors / 17 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.

Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield, LIGHTNING USB 3.1 GEN2

AUDIO BOOST 4 with NAHIMIC 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience

DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.

GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way NVIDIA SLI™ & 3-Way AMD Crossfire™

VR Ready: Best virtual reality game experience without latency, reduces motion sickness.

Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency.

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast.

EZ Debug LED: Easiest way to troubleshoot.

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.

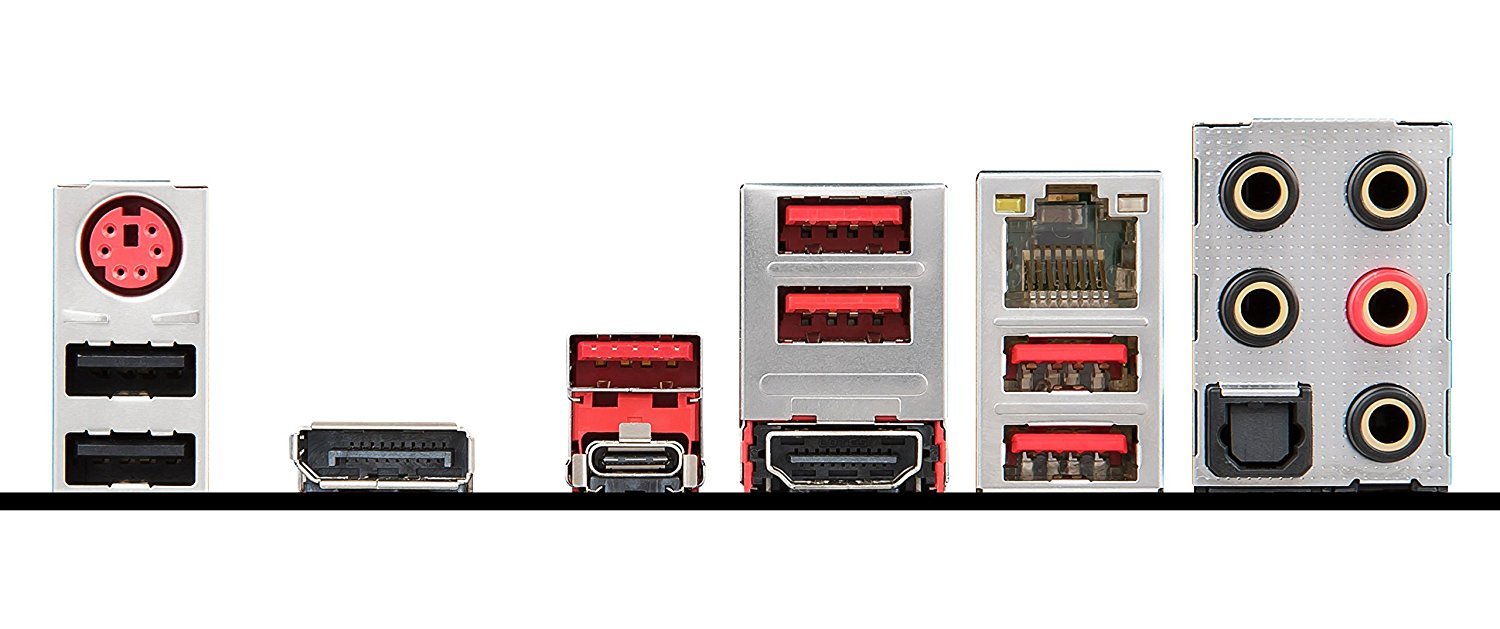

Back I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DisplayPort port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector

Internal I/O

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 2 x 5050 RGB LED strip 12V connectors
- 1 x WS2812B Individually Addressable RGB LED strip 5V connector
- 1 x CORSAIR Individually Addressable RGB LED strip 5V connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

WARRANTY

3 YEARS
