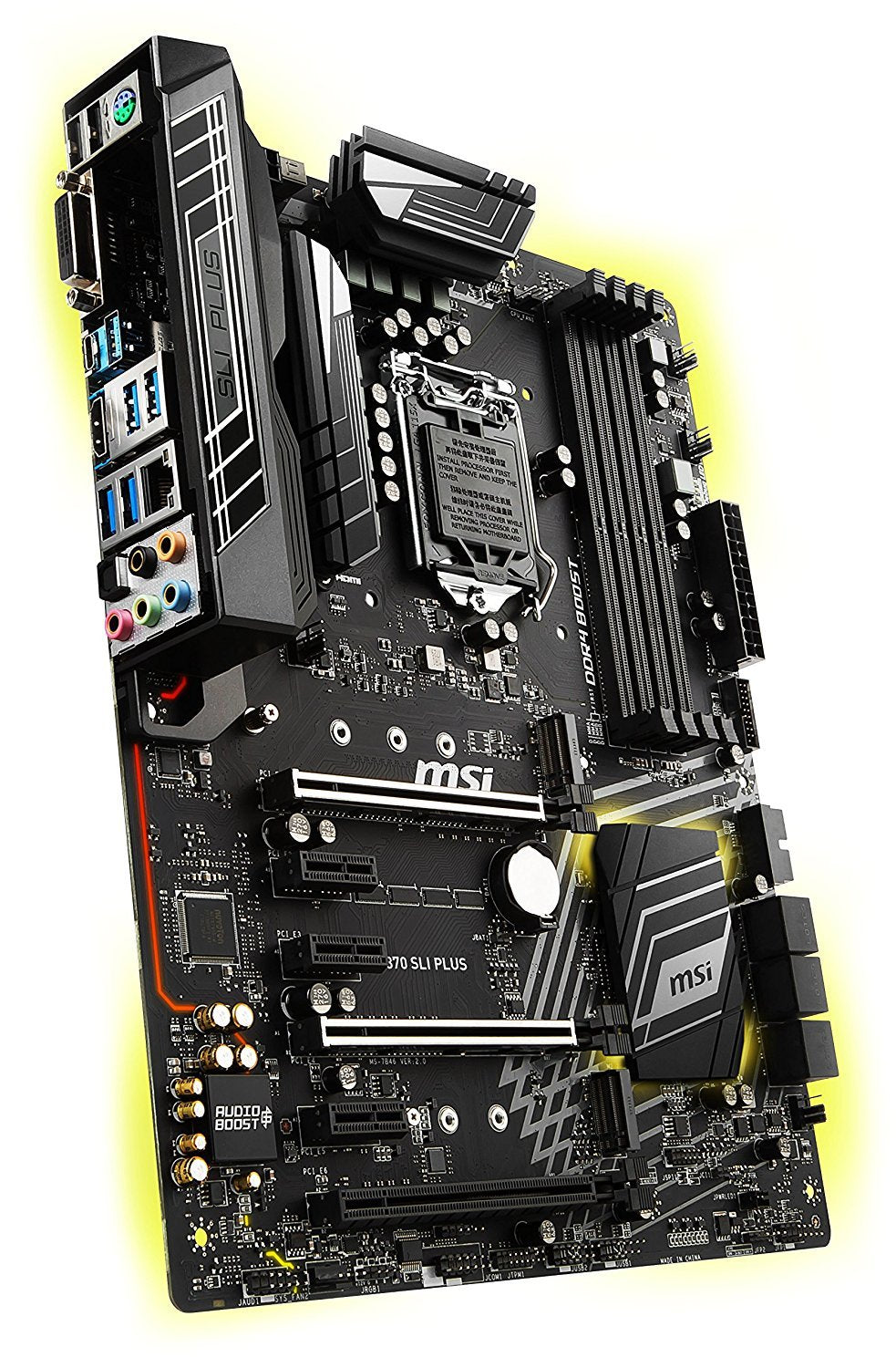

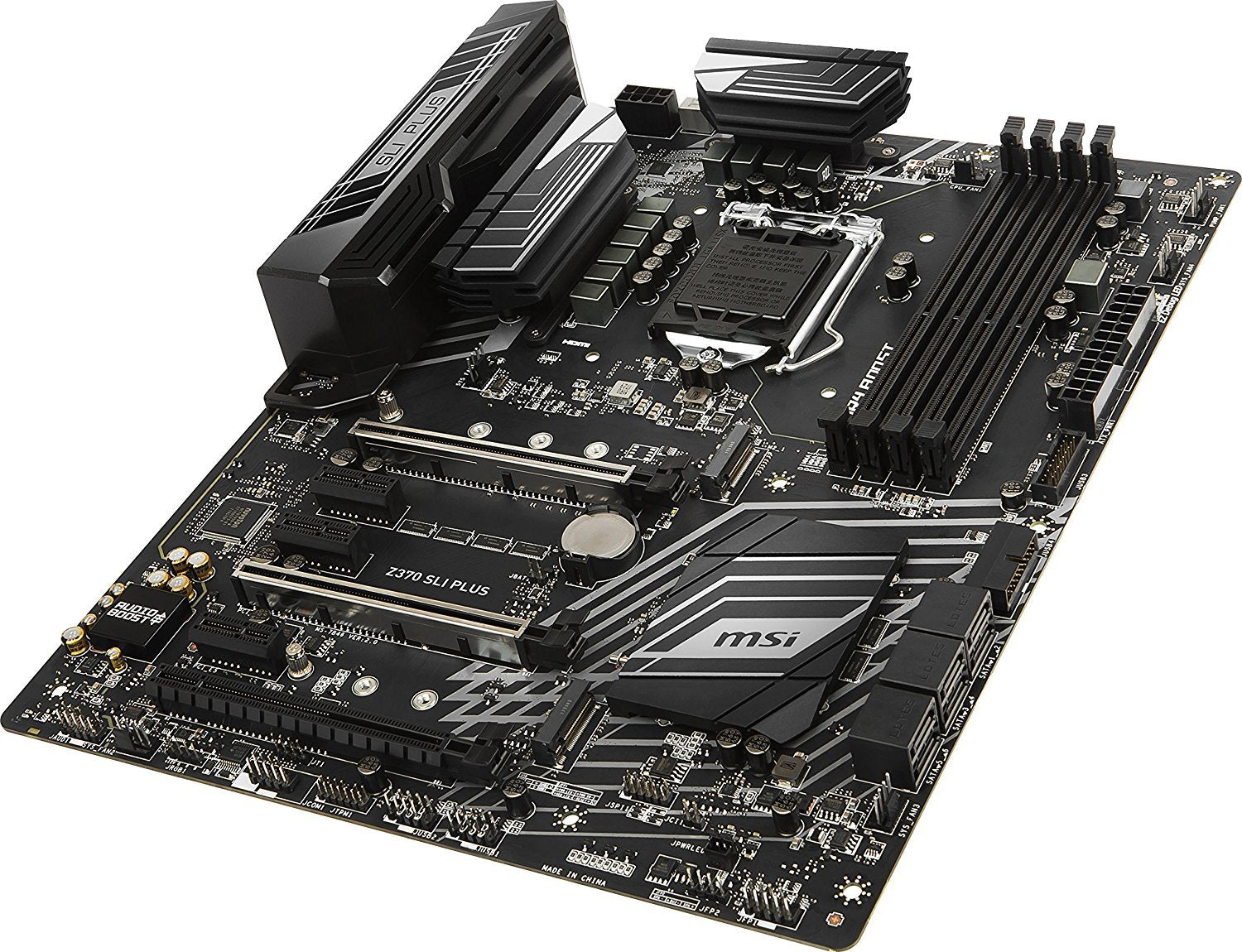

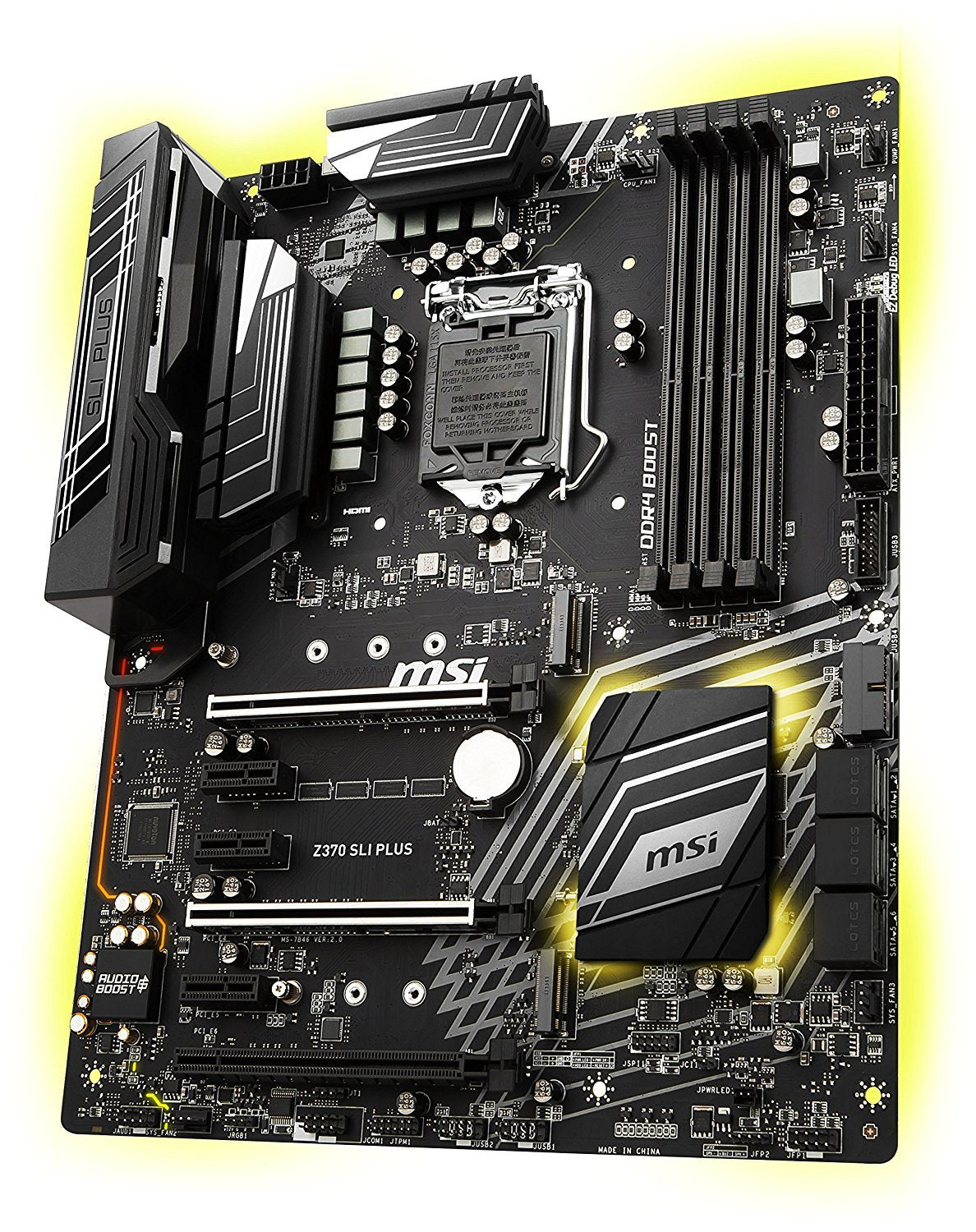

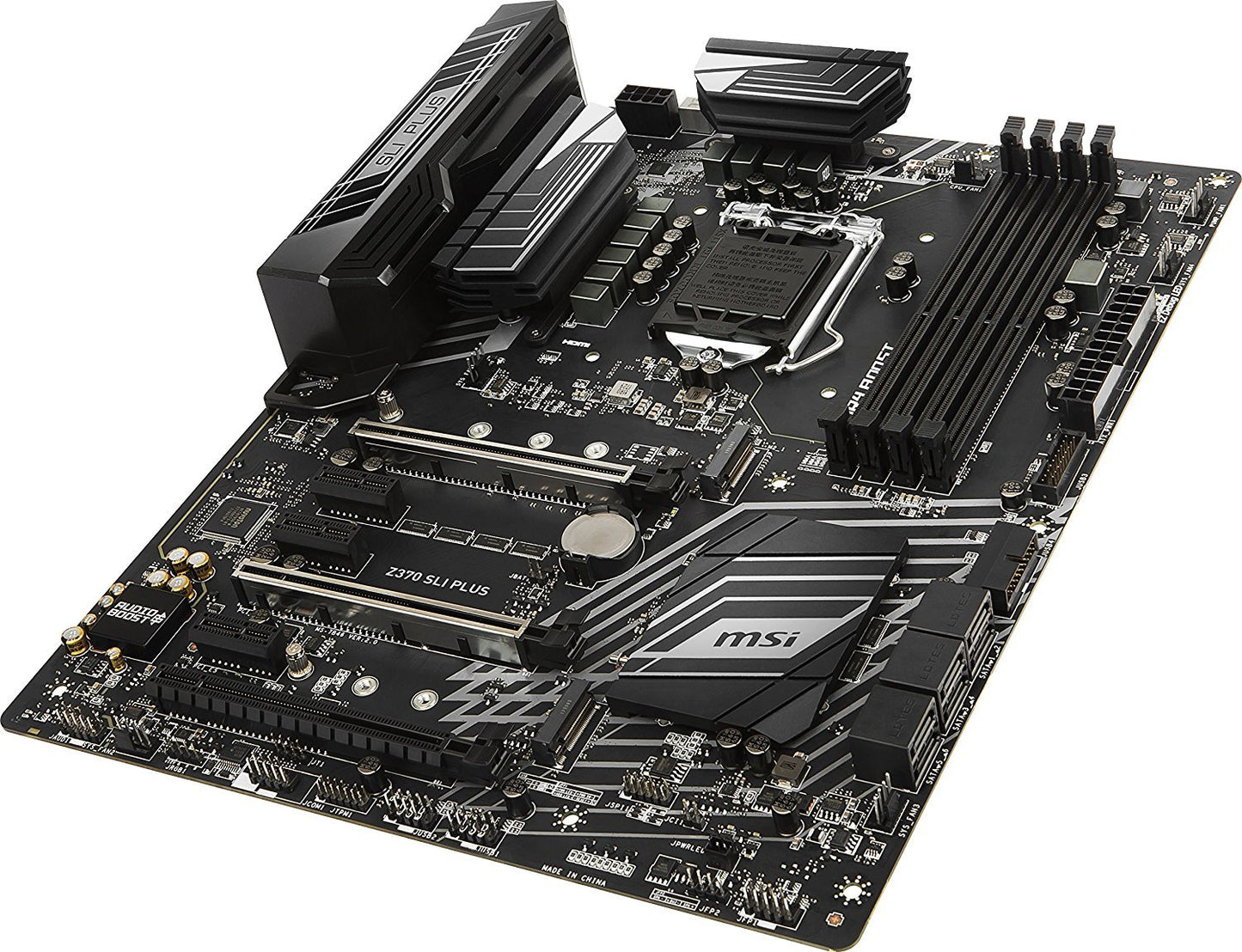

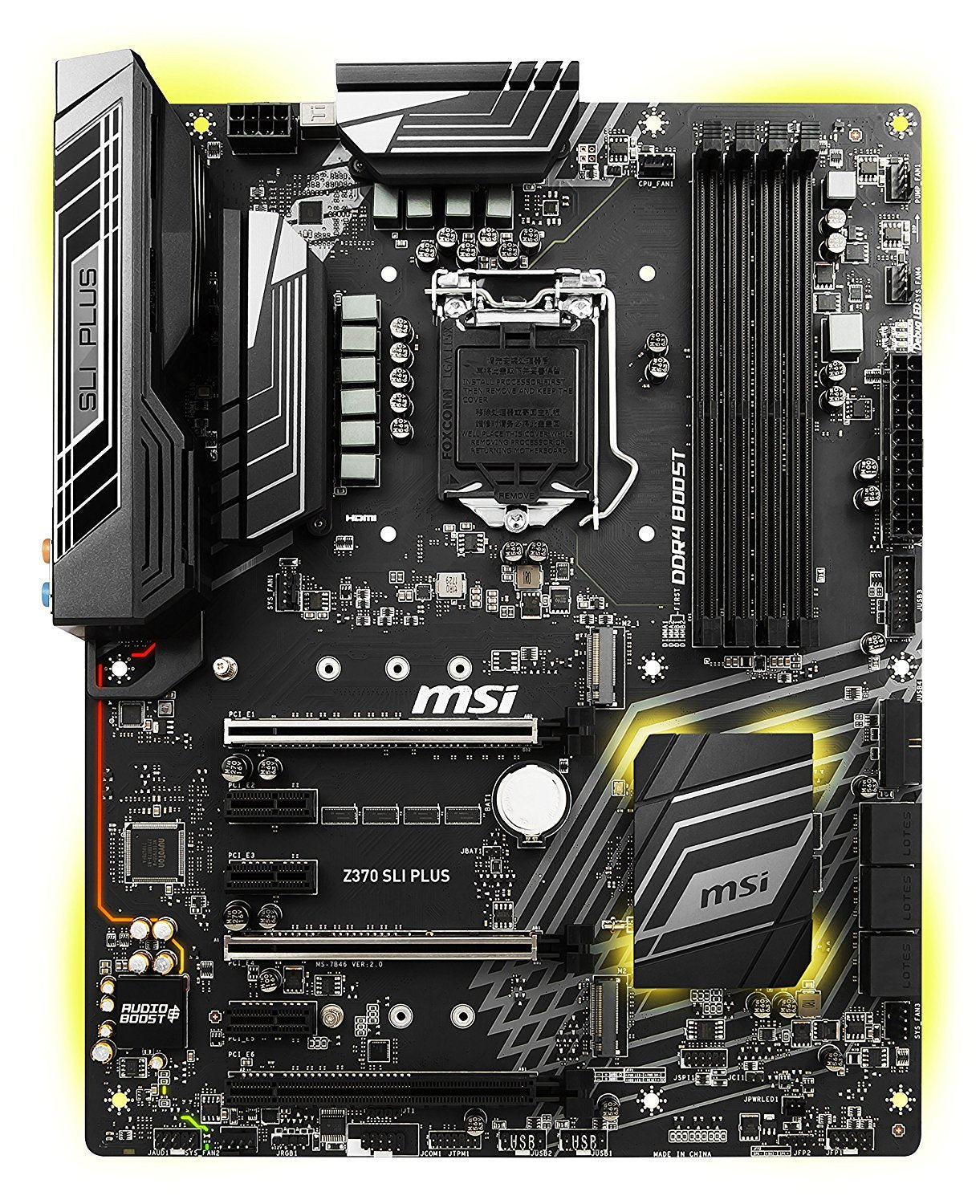

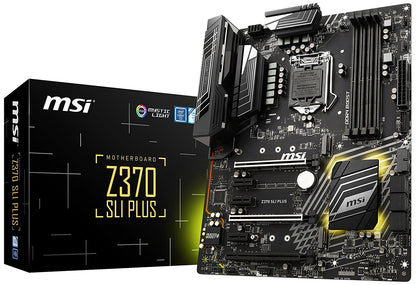

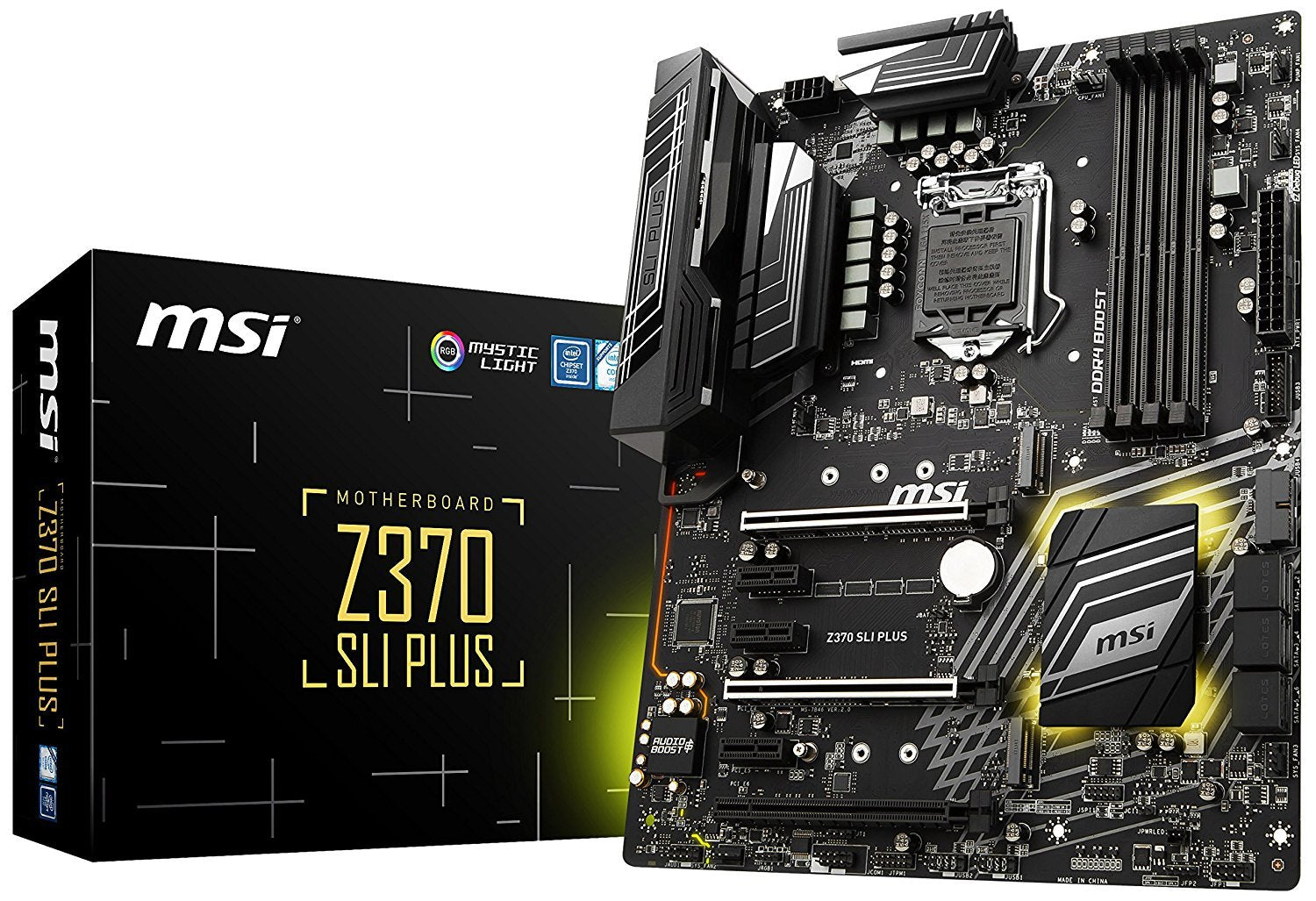

MSI Z370 SLI PLUS Intel Compatible Motherboard for Desktop Computer/PC

Supports 8th Gen Intel Core processors and Intel Pentium and Celeron processors for socket LGA 1151

Intel Z370 Chipset

4 x DDR4 memory slots, support up to 64 GB

Supports DDR4 4000+(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3300(OC), 3200(OC), 3000(OC), 2800(OC), 2667, 2400, 2133 MHz Memory

Dual channel memory architecture

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

3 x PCIe 3.0 x16 slots

3 x PCIe 3.0 x1 slots

1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 30 Hz, 2560 x 1600 @ 60 Hz

1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz

Supports 2-Way NVIDIA SLI/3-Way AMD CrossFire Technology

Realtek ALC1220 Codec

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12 V power connector

6 x SATA 6 Gb/s connectors

1 x M.2 slot supports 2242/2260/2280/22110 storage devices

1 x M.2 slot supports 2242/2260/2280 storage devices

2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water pump fan connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x RGB LED connector

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x Clear CMOS jumper

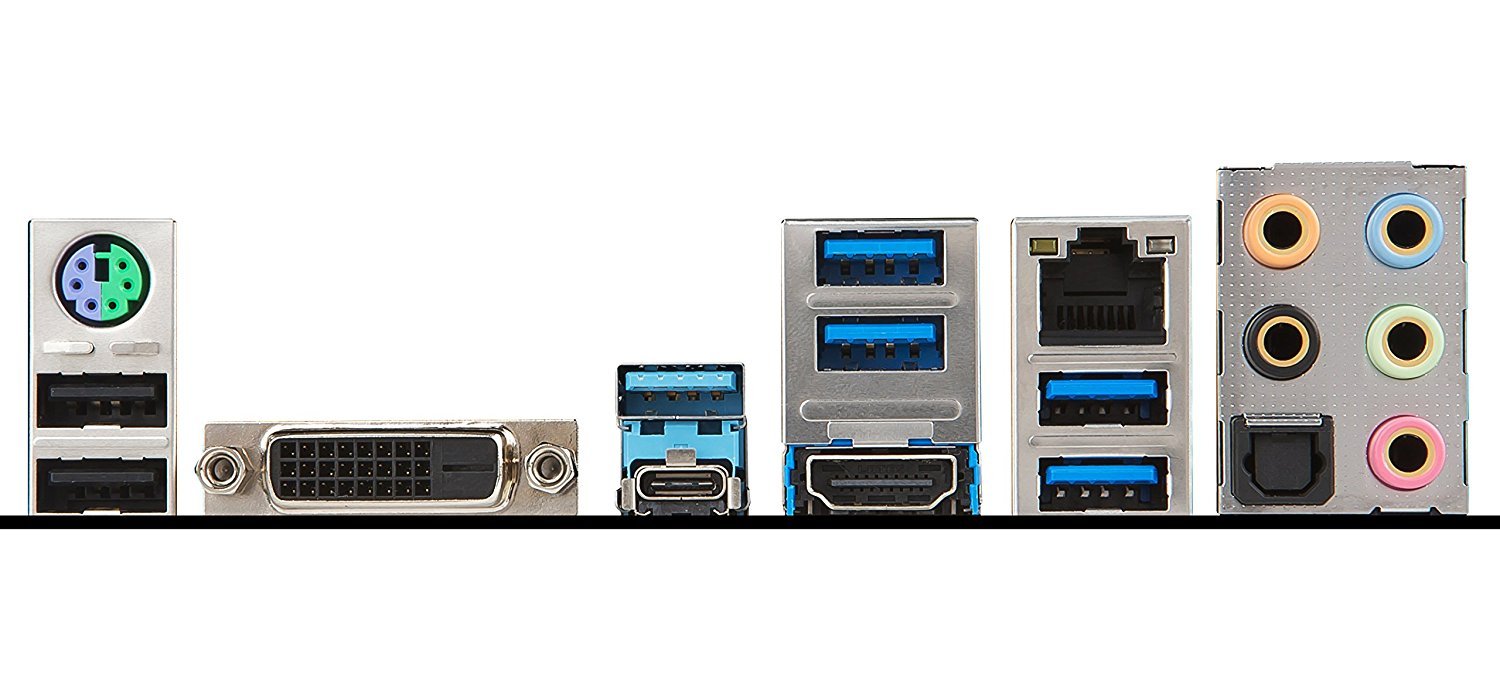

1 x PS/2 mouse/keyboard combo port

1 x DVI-D port

1 x HDMI port

2 x USB 2.0 ports

1 x USB 3.1 Type-A port

1 x USB 3.1 Type-C port

4 x USB 3.0 Type-A ports

1 x Intel I219-V Gigabit Ethernet port

1 x Optical S/PDIF out connector

5 x audio jacks

ATX

12 x 9.6" (30.5 x 24.4 cm)

3.1 lb

13.858 x 10.63 x 3.071"

3 years
